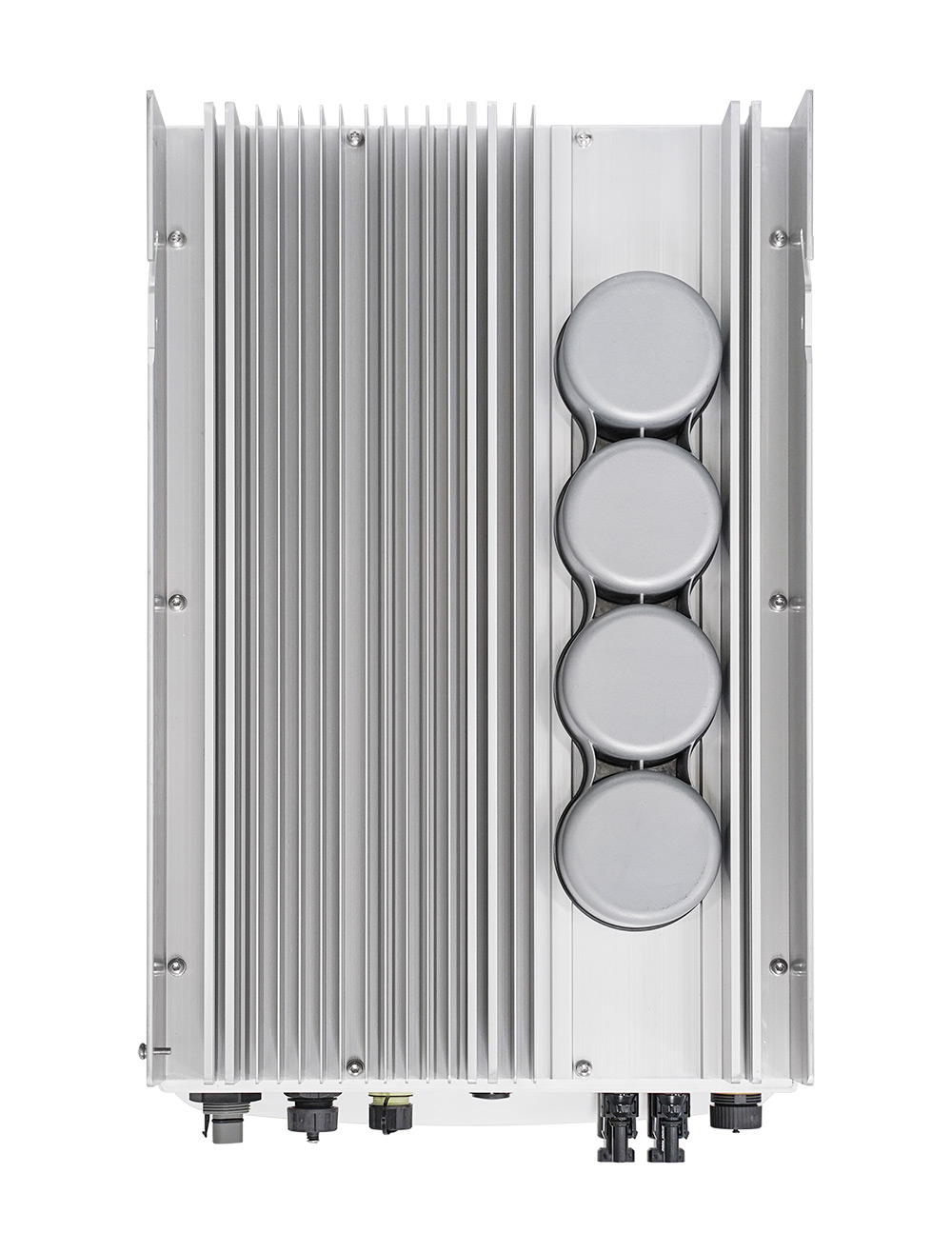

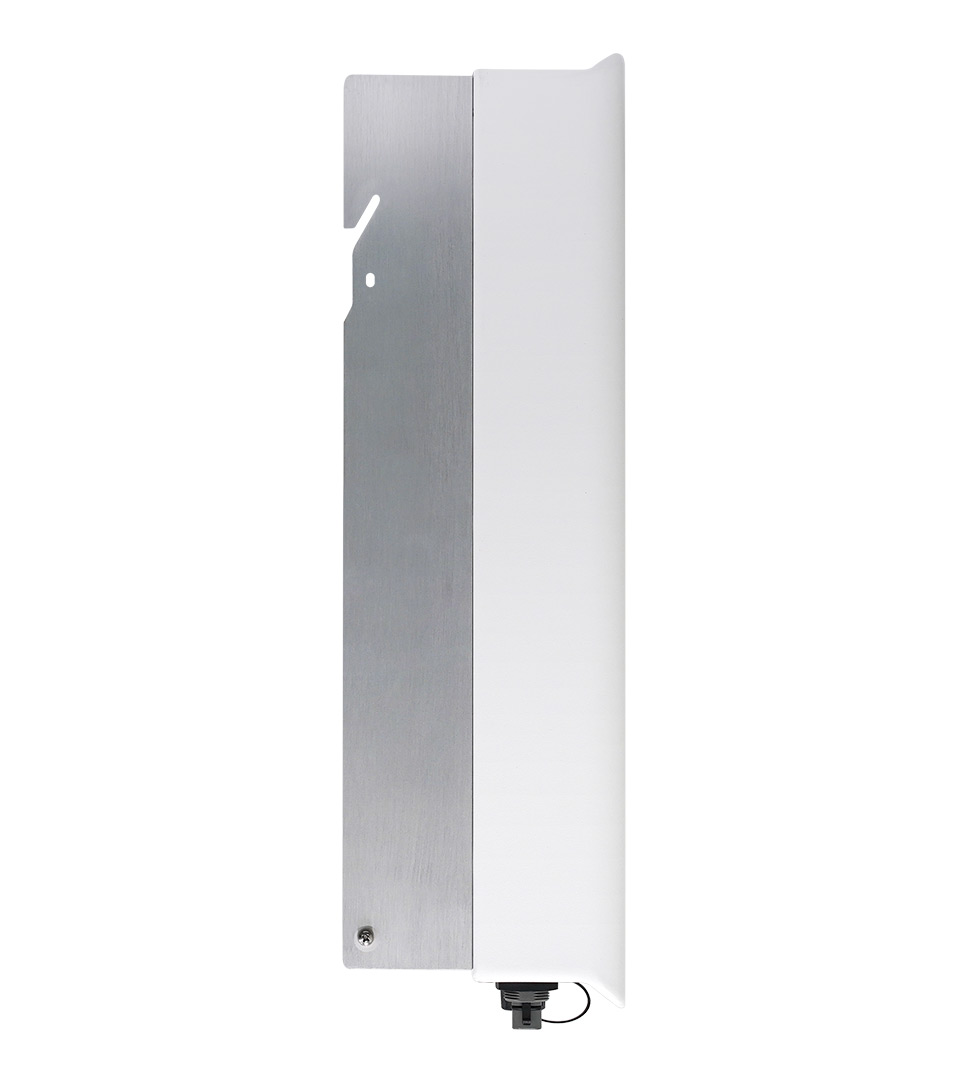

Inverter Solis 5kW S6-GR1P5K - Inverter 5KW

Features of Solis 1-Phase 5kW Inverter Model S6-GR1P5K

• Maximum efficiency of 97.7%
• String current up to 14A
• Ultra-high frequency switching technology
• Wide voltage range and low start-up voltage
• Dual MPPT design with precise MPPT algorithm
• Integrated Export Power Management (EPM)
• AFCI protection, actively reducing fire risk
• Compact and lightweight
• Grid-friendly and adaptable connectivity

Technical Specifications of S6-GR1P5K Inverter

Model Name

S6-GR1P5K

DC Input

• Maximum recommended input power: 7.5kW
• Maximum input voltage: 600V
• Rated voltage: 330V
• Start-up voltage: 120V
• MPPT voltage range: 90-520V
• Maximum input current: 14A/14A
• Maximum short-circuit current: 22A/22A
• Number of MPPTs: 2
• Maximum input strings: 2

AC Output

• Rated output power: 5kW
• Maximum apparent power output: 5kVA
• Maximum output power: 5kW
• Nominal grid voltage: 1/N/PE, 220V/230V
• Nominal frequency: 50 Hz/60 Hz
• Nominal grid output current: 22.7A / 21.7A
• Maximum output current: 25A
• Total harmonic distortion (THD): <3%
• Power factor: > 0.99 (-0.8 to +0.8)

Efficiency

• Maximum efficiency: 97.7%
• European efficiency: 97.1%

Protections

• Reverse polarity protection: Yes
• Short-circuit protection: Yes
• Overcurrent protection: Yes
• Surge protection: Yes
• Grid monitoring: Yes
• Anti-islanding protection: Yes
• Over-temperature protection: Yes
• Integrated AFCI (Arc Fault Circuit Interrupter): Yes (activation required)
• Integrated DC switch: Optional

General Information

• Dimensions (WHD): 310373160mm
• Weight: 12 kg
• Topology: Transformerless
• Self-consumption: <1 W
• Operating ambient temperature range: -25 ~ +60°C
• Relative humidity: 0-100%
• Ingress protection rating: IP66
• Cooling method: Natural convection
• Maximum operating altitude: 4000m

Standards & Certifications

• Safety/EMC standards:

  • IEC/EN 62109-1/-2
  • IEC/EN 61000-6-1/-2/-3

• Grid connection standards:

  • G98 (for 2.5K-3.6K) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1
  • VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244
  • UNE 206006 / UNE 206007-1, CEI 0-21, C10/11
  • NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727
  • IEC 60068, IEC 61683, EN 50530, MEA, PEA

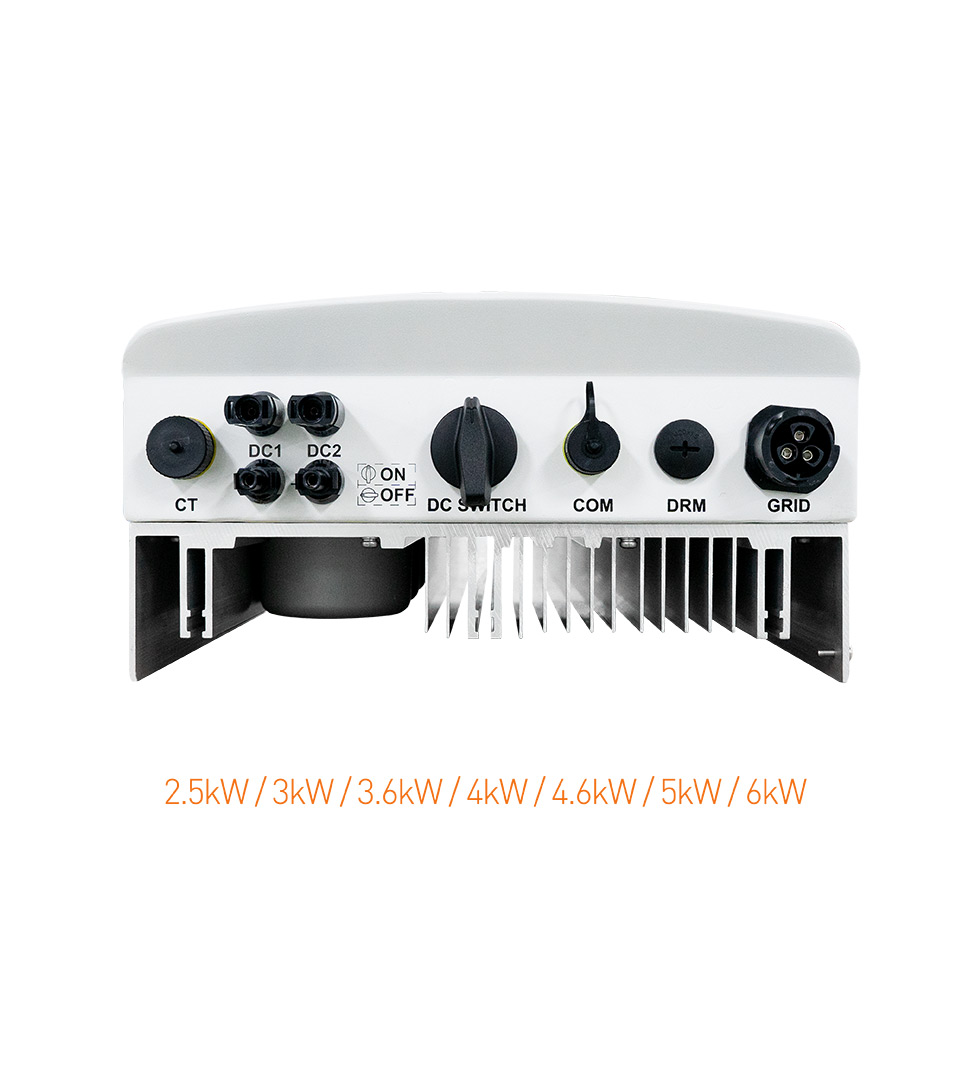

Features

• DC connection: MC4 connector
• AC connection: Quick connector
• Display: LCD
• Communication: RS485, Optional: WiFi, GPRS
