Inverter Solis 1 Phase 10KW S5-GR1P10K - Inverter 10KW

Features of the Solis 1-Phase 10kW Inverter S5-GR1P10K:

• Maximum efficiency of 98.0%
• String current up to 14A
• Ultra-high frequency switching technology
• Wide voltage range and low startup voltage
• 3 MPPT design with precise MPPT algorithm
• AFCI protection to actively reduce fire risk
• Compact and lightweight
• Grid-friendly and adaptable connection

Technical Specifications of Solis 10kW 1-Phase Inverter S5-GR1P10K:

Model Name

S5-GR1P10K

DC Input

• Maximum recommended input power: 15kW
• Maximum input voltage: 600V
• Rated voltage: 330V
• Startup voltage: 120V
• MPPT voltage range: 100-500V
• Maximum input current: 14A/14A/14A
• Maximum short-circuit current: 22A/22A/22A
• Number of MPPTs: 3
• Maximum number of input strings: 3

AC Output

• Rated output power: 10kW
• Maximum apparent power output: 10kVA
• Maximum output power: 10kW
• Rated grid voltage: 1/N/PE, 220V/230V
• Rated frequency: 50 Hz/60 Hz
• Rated grid current output: 45.5A/ 45.5A
• Maximum grid current output: 45.9A
• Total harmonic distortion: <3%
• Power factor: > 0.99 (-0.8 to +0.8)

Efficiency

• Maximum efficiency: 98%
• European efficiency: 97.1%

Protection Features

• DC reverse polarity protection: Yes
• Short circuit protection: Yes
• Overcurrent protection: Yes
• Surge protection: Yes
• Grid monitoring: Yes
• Anti-islanding protection: Yes
• Over-temperature protection: Yes
• Integrated AFCI (DC arc fault protection): Yes (requires activation)
• Integrated DC switch: Optional

General Specifications

• Dimensions (WHD): 333579253mm
• Weight: 18.5 kg
• Topology: Transformerless
• Self-consumption: <1 W
• Operating ambient temperature range: -25 ~ +60°C
• Relative humidity: 0-100%
• Ingress protection rating: IP66

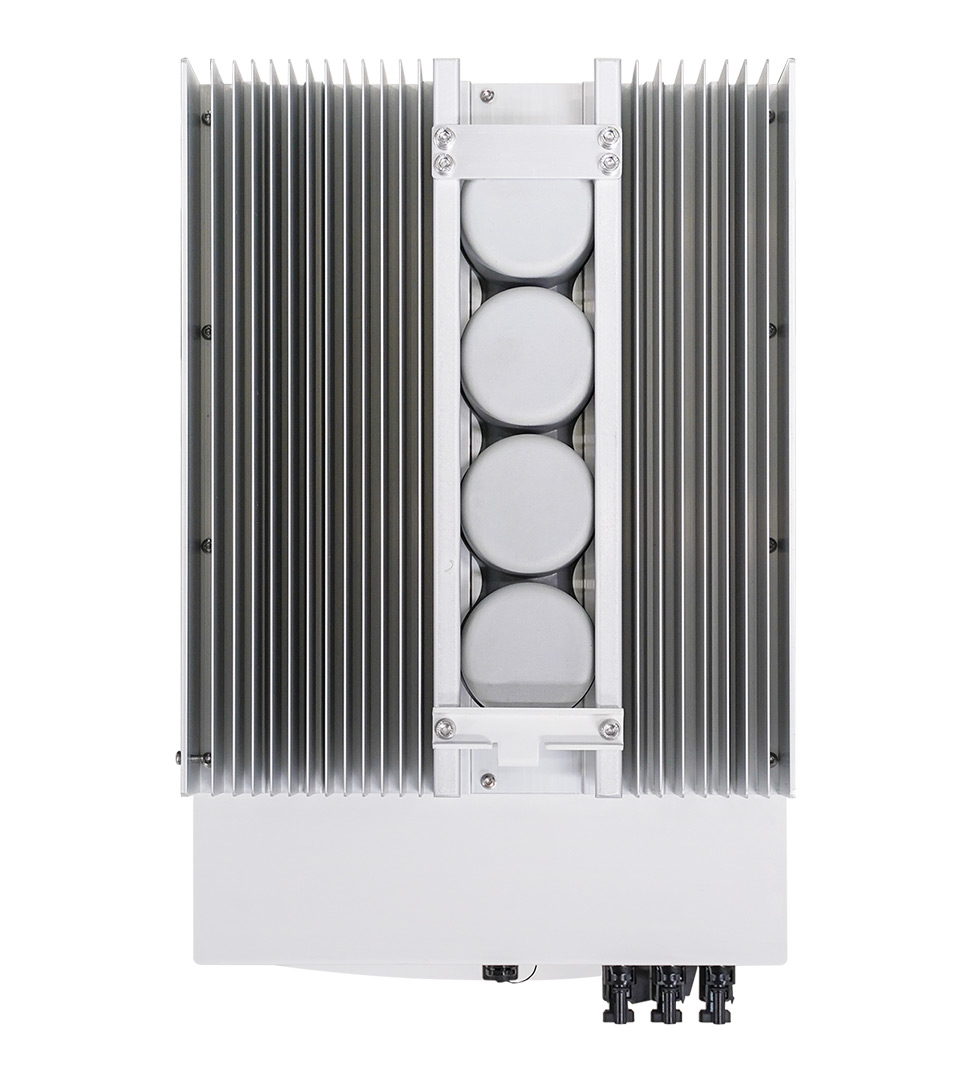

• Cooling method: Natural convection
• Maximum operating altitude: 4000m
• Safety/EMC standards:
  • IEC/EN 62109-1/-2
  • IEC/EN 61000-6-1/-2/-3/-4

Grid Connection Standards

• G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530

Features

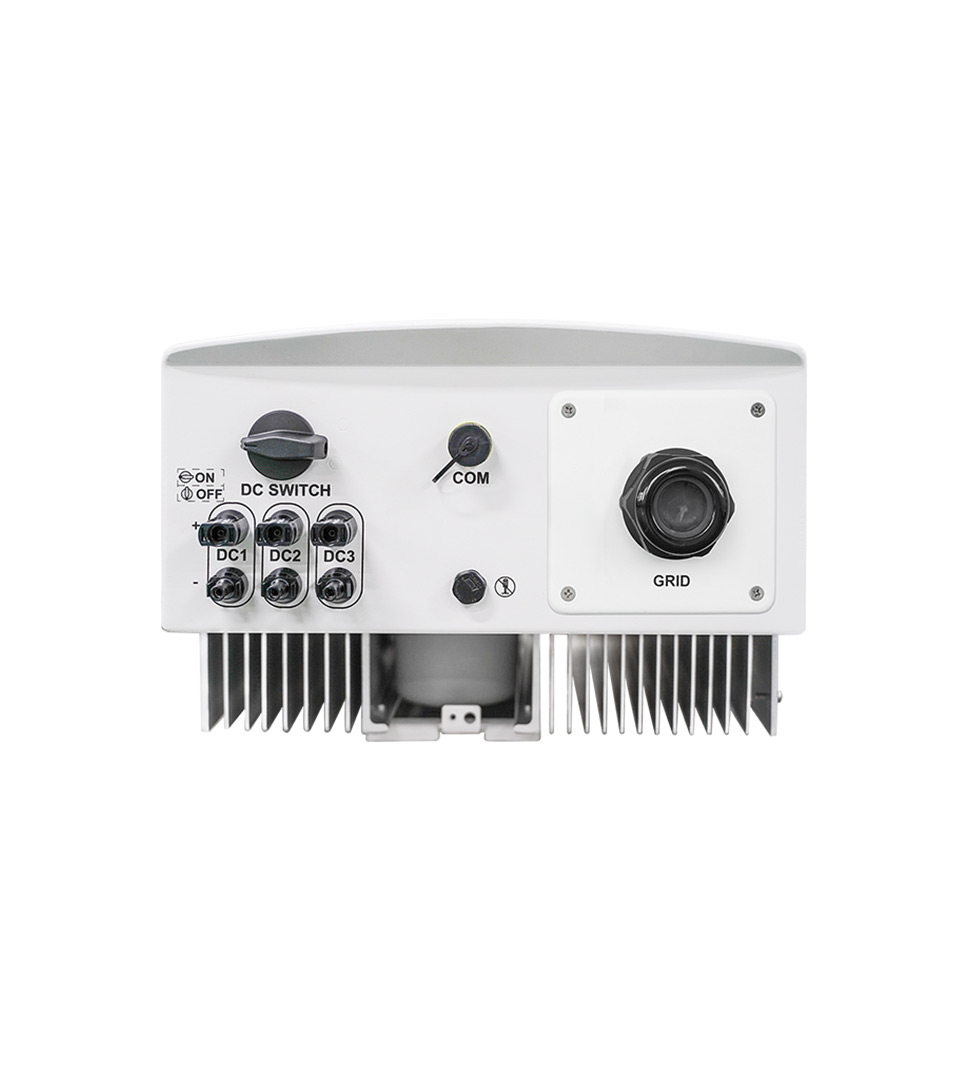

• DC Connection: MC4 connector
• AC Connection: Quick-connect plug
• Display: LCD
•
