Technical Specifications of the Solis Inverter S6-GR1P5K-S
Model Name
S6-GR1P5K-S
DC Input
- Recommended max input power: 7.5kW
- Max input voltage: 550V
- Rated voltage: 330V
- Startup voltage: 100V
- MPPT voltage range: 90-550V
- Max input current: 16A/16A
- Max short circuit current: 22A/22A
- Number of MPPTs: 2
- Max number of input strings: 2
AC Output
- Rated output power: 5kW
- Max apparent power: 5kVA
- Max output power: 5kW
- Nominal grid voltage: 1/N/PE, 220V/230V
- Nominal frequency: 50 Hz/60 Hz
- Rated grid output current: 22.7A / 21.7A
- Max output current: 22.7A
- Total harmonic distortion (THD): <3%
- Power factor: >0.99 (-0.8 to +0.8)
Efficiency
- Maximum efficiency: 97.7%
- European efficiency: 97.1%
Protections
- Reverse polarity protection: Yes
- Short circuit protection: Yes
- Output overcurrent protection: Yes
- Surge protection: Yes
- Grid monitoring: Yes
- Anti-islanding protection: Yes
- Temperature protection: Yes
- Integrated AFCI (DC arc fault protection): Yes (activation required)

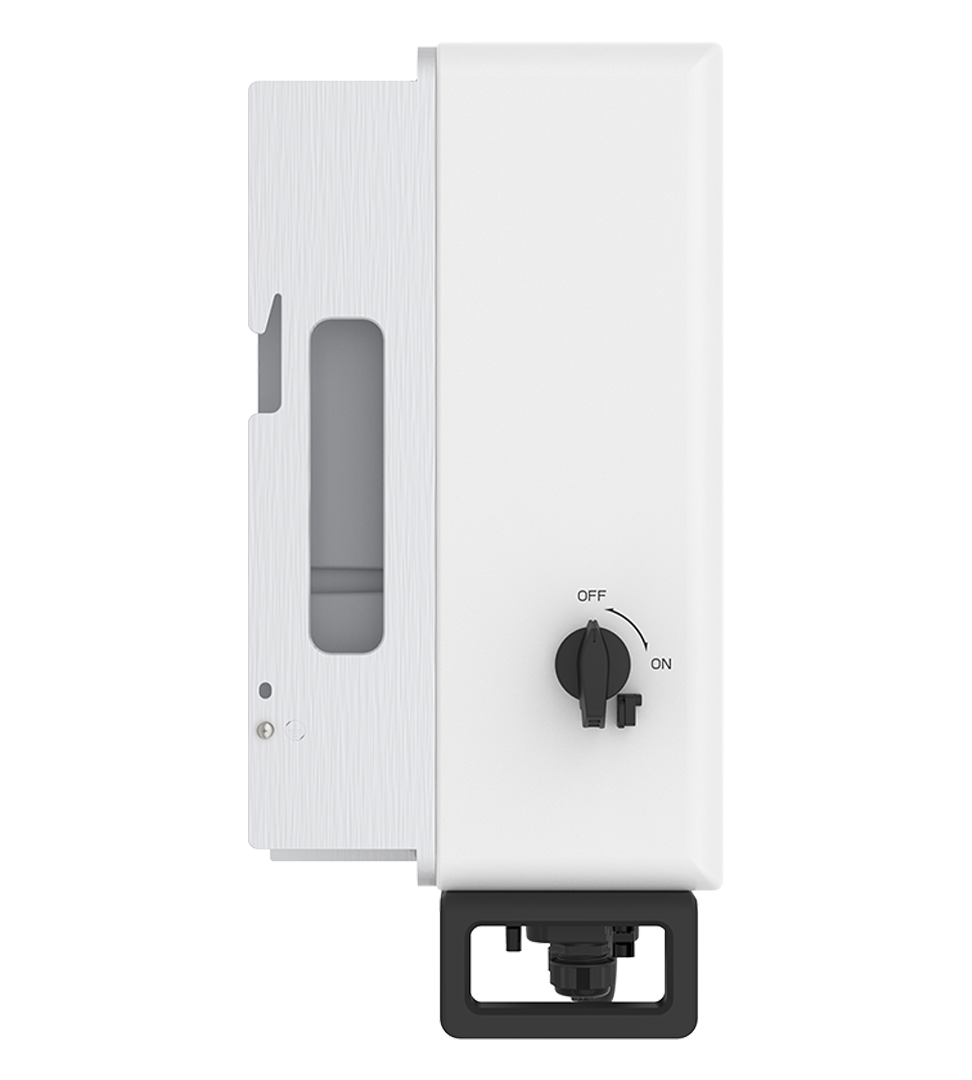

- Built-in DC switch: Yes
General Specifications
- Dimensions (WHD): 310371161mm
- Weight: 8.9 kg
- Topology: Transformerless
- Self-consumption: <1 W
- Operating temperature range: -25 ~ +60°C
- Relative humidity: 0-100%
- Ingress protection: IP66
- Cooling method: Natural convection
- Max altitude: 4000m
- Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
Grid Compliance Standards
G98/G99, VDE-AR-N 4105, EN 50549-1, VDE 0126, CEI 0-21, C10/11, NRS 097-2-1, TOR, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

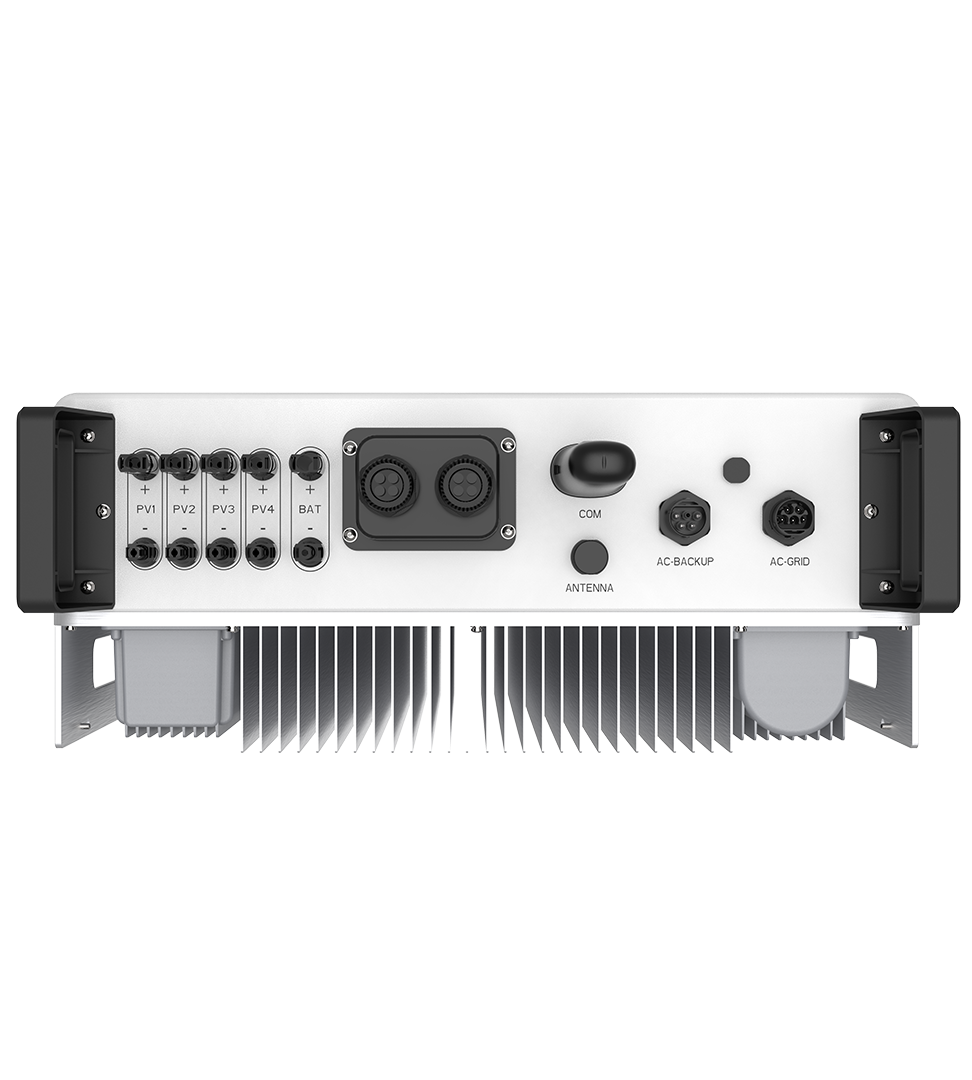

Features
- DC Connection: MC4 Connector
- AC Connection: Quick Plug Connector
- Display: LED + App
- Communication: RS485, USB (Optional: WiFi, GPRS)
